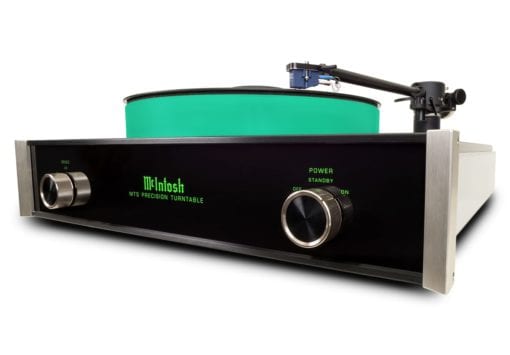

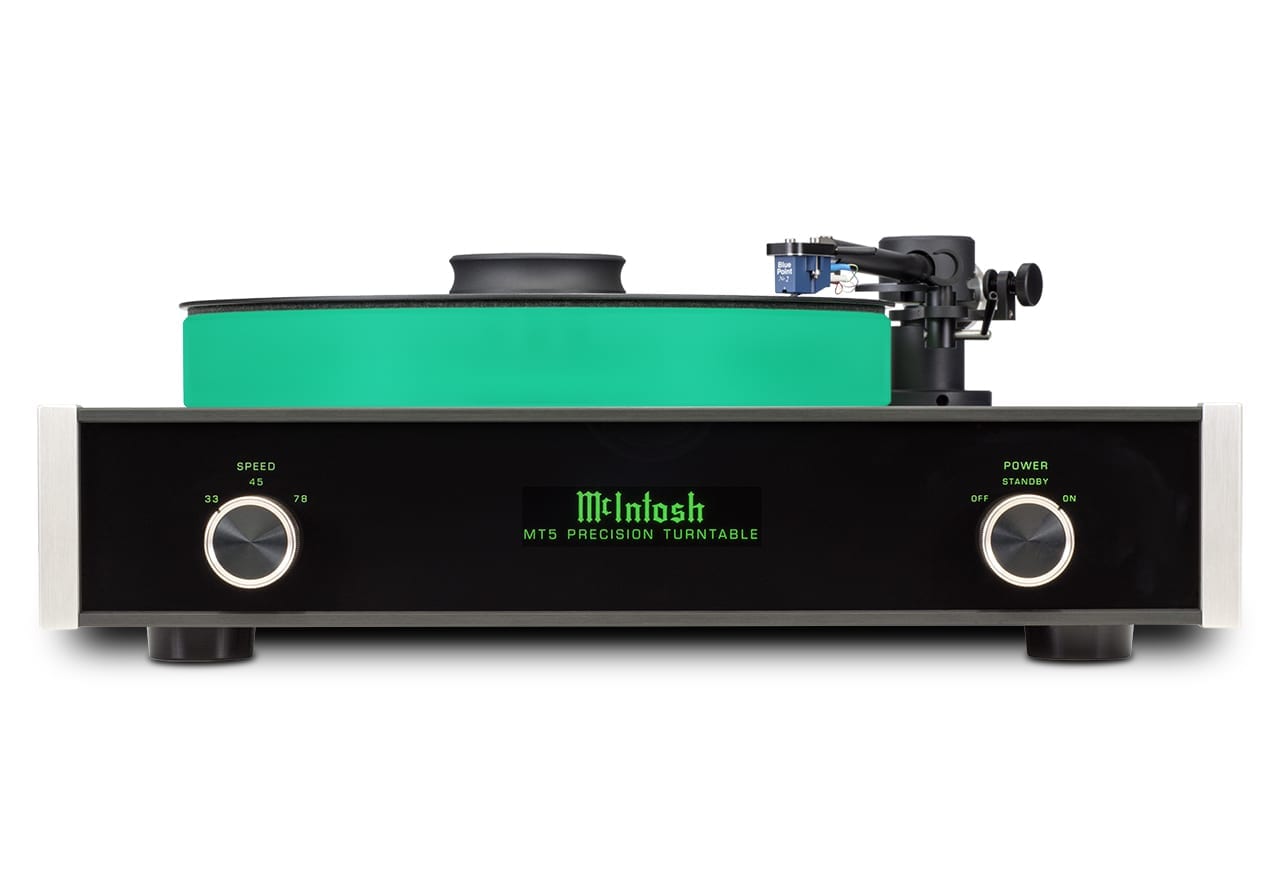

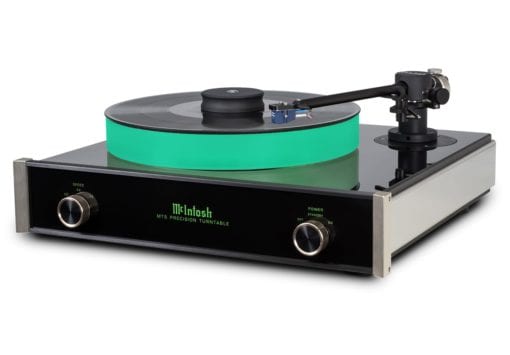

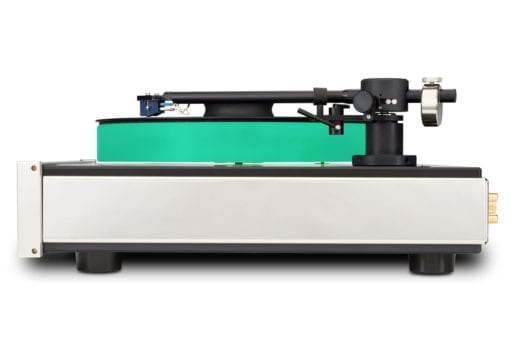

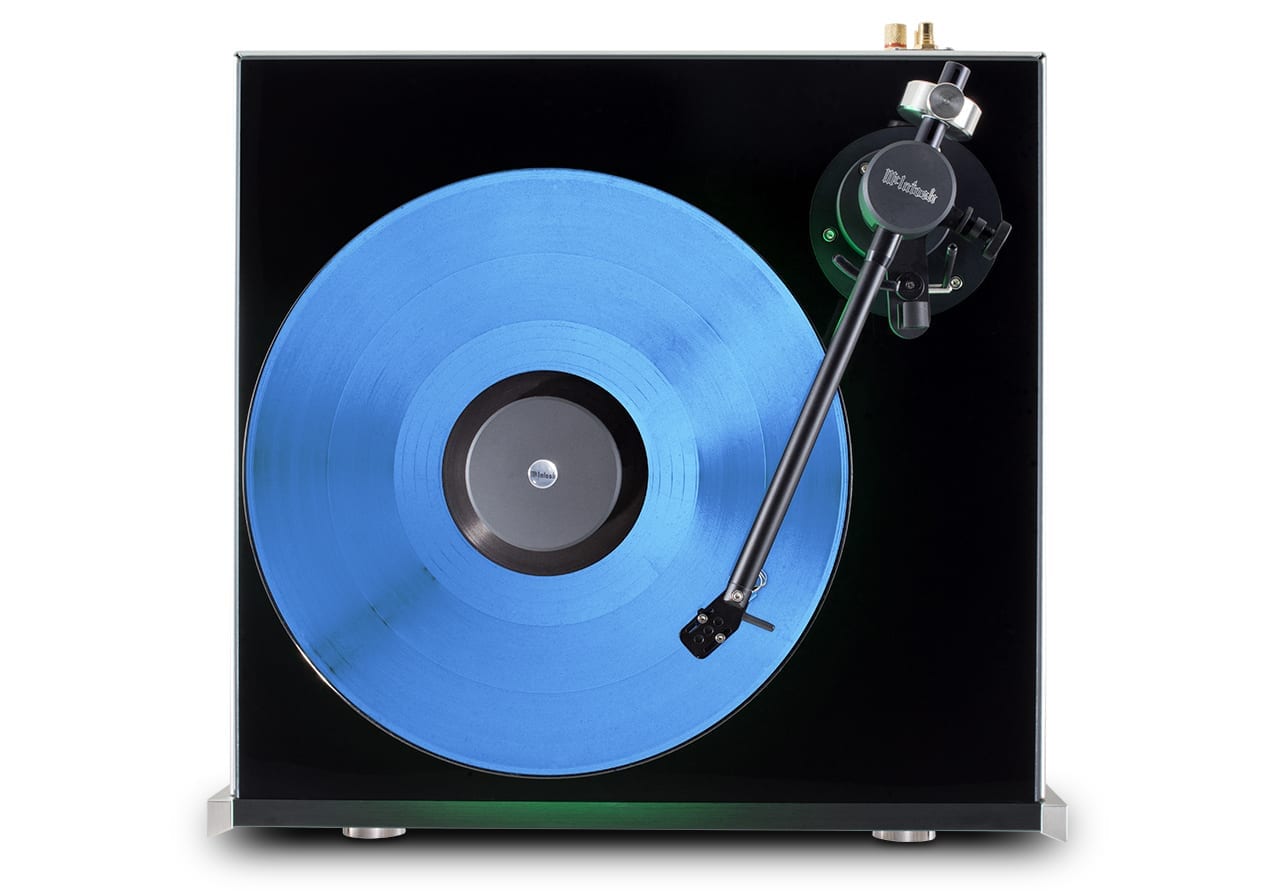

MT5 2-CHANNEL PRECISION TURNTABLE

SKU: MT5 Category:

Description

The McIntosh MT5 precision turntable is a complete turntable package that is more than the sum of its parts. Engineered to exacting McIntosh standards, each piece contributes to deliver a superb performance.

“The turntable of the gods.” – Rolling Stone

“One of the best we’ve tested in a long time.” – Lyd & Bilde

MT5 comes equipped with a high performance platter and motor drive assembly, precision tone arm and a high output moving coil cartridge that is also compatible with moving magnet inputs. The illuminated, magnetically suspended platter produces an inviting glow that’s sure to be a conversation starter among friends and guests alike.

“MT5 offers a solid and clear sound with great temporal grip and fluency, whilst dynamic contrasts were conveyed with conviction.” Awarded 5 out of 5 Globes. – Hi-Fi World

“The MT5 Precision Turntable lets you experience vinyl the way that you’re supposed to: truly absorbing the music, hearing every note as if it’s the first time.” – Complex

MT5 is factory adjusted for perfect playback. Tracking force, anti-skate force, cartridge overhang and arm height are all preset for maximum performance. Advanced magnetic platter bearings and a precise belt drive motor spins records with absolute stability and quiet, assuring a pleasurable vinyl listening experience. The custom tone arm and matching moving coil cartridge track records with minimum friction using magnetic antiskate and horizontal, tone-arm bearings. While the construction of the MT5 is meticulous, the setup is simple. In a few easy steps, you’ll be ready to enjoy your favorite vinyl recordings.

“A turntable that turns the table on the traditional listening experience — making the process of enjoying vinyl as smooth as its rich analog sound.” – Gear Patrol

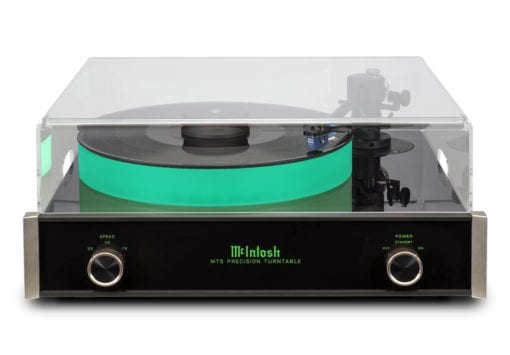

While maintaining complementary McIntosh styling, the MT5 takes full advantage of the chassis materials used to suppress noise, resonance and coloration so the only sound produced is that which is on your records. A clear, form-fitting dust cover is included to protect the MT5’s moving parts, along with your valued records. The MT5 turntable is compatible with any McIntosh stereo preamplifier and is a great piece to complete your two-channel stereo system. Contact your local dealer​ to learn more.

Additional information

Brand

CARTRIDGE SPECIFICATIONS
CARTRIDGE TYPE
Moving Coil, High Output
OUTPUT LEVEL
2.5 mV at 5 cm/s
LOAD IMPEDANCE
1000 Ohms recommended (Preamp MC Input)
FREQUENCY RESPONSE
20Hz to 50kHz
CHANNEL SEPARATION
35dB at 1kHz
COMPLIANCE
15 x 10-6 cm/dyne
RECOMMENDED TRACKING FORCE
2.0 g
CHANNEL DIFFERENCE
Less than 0.5 dB at 1kHz
TOTAL MASS
6.3 g
STYLUS
Elliptical Diamond
CANTILEVER MATERIAL
Aluminum
TONEARM SPECIFICATIONS
BEARING
Magnetic Sapphire and Ceramic
ARM TUBE
Dural-Aluminum
COUNTERWEIGHT
Eccentric
ADJUSTMENTS
Magnetic
TURNTABLE SPECIFICATIONS
PLAYBACK SPEEDS
33 1/3, 45 and 78 rpm
MOTOR TYPE
DC Motor with Stainless Steel Brushes
SPEED CONTROL
Servo System
PLATTER
Silicon Acrylic
PLATTER BEARING
Magnetic Suspended Ceramic

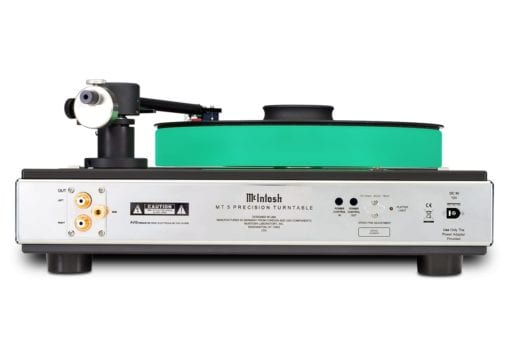

CONNECTIVITY
STEREO OUTPUTS UNBALANCED
1
CONTROL
POWER CONTROL INPUT
Yes
POWER CONTROL OUTPUT
Yes
PLATTER LIGHT
Yes
SPEED CONTROL FINE ADJUSTMENT
Yes
GENERAL SPECIFICATIONS
DUST COVER
Yes
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17-1/2″ (44.45cm) x 7″ (17.8cm) (7-1/2″ (19.0cm) with dust cover) x 19″ (48.26cm)
Note: Tone Arm Height will vary depending on the type of Cartridge installed.
WEIGHT
31.5 lbs (14.3 kg)
