Aurender W20

Description

Designed to be used with high performance digital-to-analog converters, the Aurender W20 is one of the few Music Players to support external word clocks used in recording studios, and dual-wire mode used by many reference digital-to-analog converters to separate transmission of left and right channels for better fidelity.

With 12TB of (6TBx2) internal hard disk drives and one 240GB solid-state drive cache for playback, the W20 is the perfect solution for even the most extensive high resolution music collections.

Innovative Technology with battery power/dual wire/master clock input

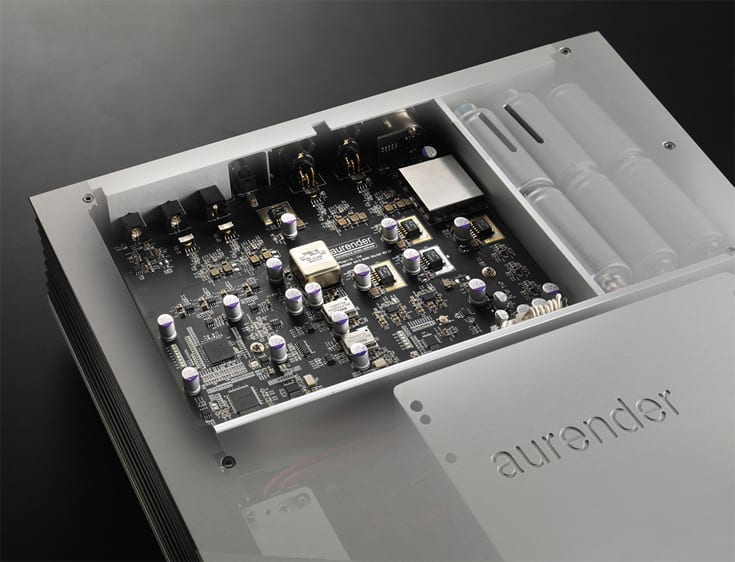

In digital audio, jitter and noise in the audio signal can seriously affect the performance of digital-to-analog converters. The Aurender W20 is the world’s first music player to completely eliminate noise from AC power supplies and AC mains through the use of LiFePO4 (LFP) batteries to power audio components. An FPGA-based All Digital Phase Locked Loop system with an Oven-Controlled Crystal Oscillator (OCXO) clock is used to maintain long term jitter to below negligible levels, and specially designed circuitry provides clean, noise-free power to the dedicated USB digital audio output. A solid-state drive cache for playback and extensive shielding using thick aluminum partitions also minimize and eliminate the many types of jitter and noise associated with the use of disk drives for playback.

Full Range of Digital Audio Outputs and Ports for Network Connectivity

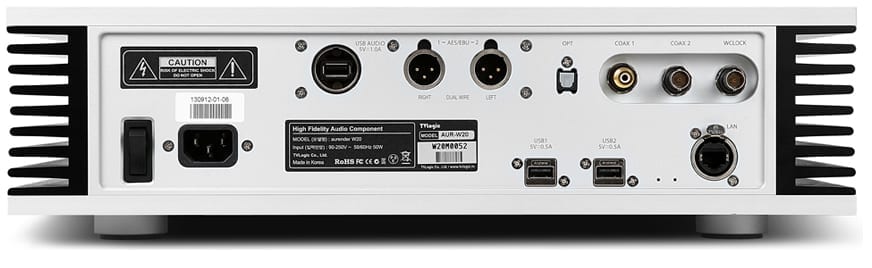

Designed to be matched with high performance digital-to-analog converters, the Aurender W20 is equipped with various SPDIF outputs (BNC, AES/EBU, coaxial, optical) and one dedicated USB Audio Class 2.0 output. For network connectivity and file transfers, the W20 comes with one a Gigabyte Ethernet port and two USB 2.0 data ports.

Aurender App Packed with Convenient Features for Full-Function Control

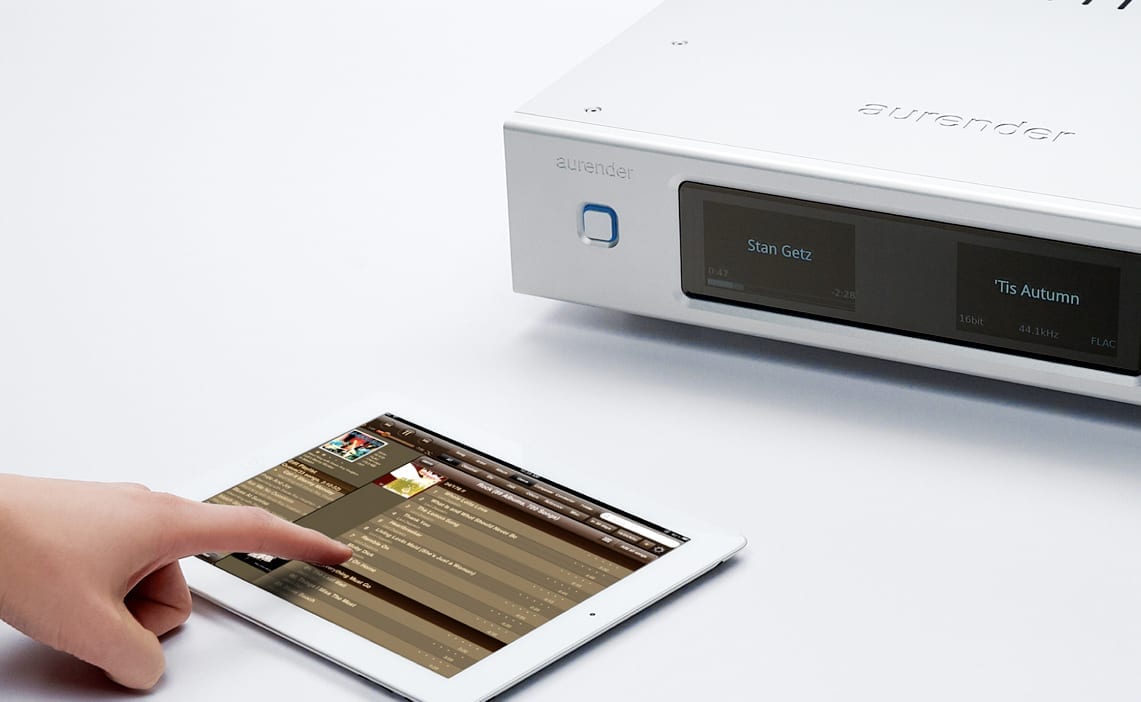

The Aurender Conductor App turns the iPad into a versatile user interface for Aurender Music Server/Players. All settings and functions of the Aurender Server/Music Player can be easily accessed through the Settings menu, and the Aurender App comes with extensive features to make managing, viewing and playing high resolution music collections a breeze.

12TB Hard Disk Drive Storage with Solid-State Drive Cache for Playback
An internal hard drive provides 12TB of storage and a 240G solid-state drive is used to cache music for playback. If a selected song or album is already cached to the solid-state drive, the hard drive will remain asleep. This minimizes wear and tear on the hard drive. By caching songs to the solid-state drive for playback, electrical and acoustic noise resulting from spinning disks, moving heads and motors are also completely eliminated.

Dedicated USB Audio Class 2.0 Output with Ultra Low Noise Power Circuitry
The dedicated USB Audio Class 2.0 output is designed to deliver an exceptionally transparent audio signal free of noise, and is shielded from outside electronic interference.

Quality Fanless Switching Mode Power Supply (SMPS for CPU board)
A fanless Switching Mode Power Supply delivers stable power to non-audio components and is enclosed in a separate compartment to prevent any interference to other components.

Isolated and Damped Hard Disk Drives with its own Aluminum casing
The internal hard disk drives are suspended on floating brackets to minimize vibrations and housed in a machined aluminum compartment for complete isolation.

AMM and NAS(Network-Attached Storage) Support
If you already have NAS set-up, the Aurender W20 is able to play music stored on NAS devices,

AMM(Aurender Media Manager) software is available for Mac(OS X 10.9 or later) /Windows7 or later.

You can run AMM software on your platform of choice, please specify the location of your content on NAS then it will automatically find the Aurender in you local network and make a combining music database. It’s transparent to the user, so once you run AMM , you can select the music with all the meta-data using the Aurender Conductor App without the knowledge of the location of your music files.

Remote Internet Technical Support
Sending a Remote Support Request through the Aurender App allows engineers to quickly diagnose and fix problems over the Internet.
