The Innovation Compact turntable with its very efficient design is nothing less than an audiophile revelation. Thanks to optical speed control (OSC), speed stability values are obtained that lift this turntable into the global highend class.
| Brand |
|---|
CONSTRUCTION DETAILS Resonance optimised chassis’s shape, belt driven with optical, full automatic speed control
SPEED RANGES 33 ⅓ rpm, 45 rpm, 78 rpm

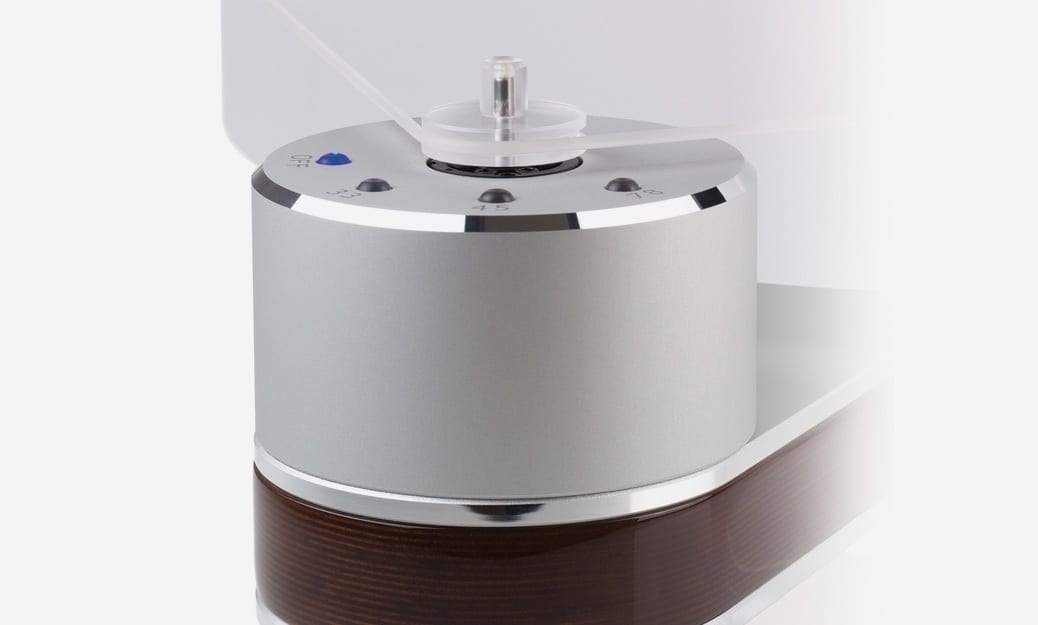

DRIVE UNIT Decoupled DC motor in a massive metal-housing.
This turntable can be connected to 230 V or 110 V AC (50 Hz and 60 Hz).
BEARING Inverted and polished ceramic bearing shaft, polished sinter bronze insert, including patented CMB bearing technology
PLATTER Delrin or acrylic GS-PMMA platter (Wood version), precision CNC machined surface
SPEED ACCURACY (MEASURED) less than ± 0.08 %
DEVIANCE OF THE SET VALUE ± 0.01 %
POWER CONSUMPTION Max. consumption: 9.3 Watt
Consumption in operation: 2.5 Watt
Standby mode: 2.5 Watt
Off mode: 0.0 Watt
TOTAL WEIGHT Approx. 12 kg (without tonearm and power supply)
DIMENSIONS (W/D/H in inches) Approx. 16.85 x 15.35 x 5.75 (without tonearm)
DIMENSIONS (W/D/H in mm) Approx. 428 x 390 x 146 (without tonearm)
