Description
The classic cartridge, which was first introduced 25 years ago, has been recognized as one of the first MC-cartridges that combined a relatively high compliance with a smooth, and yet extended frequency response.

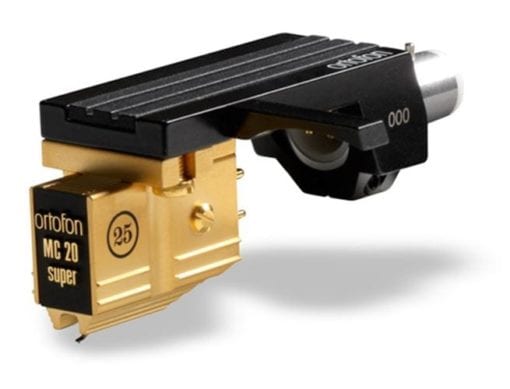

The MC 20 Super of 2010 anno supplied mounted on a high-quality adjustable aluminum headshell. The supplied headshell will allow a correct alignment on the Ortofon tonearm series with standard headshell connector. The MC 20 Super can also be used on most tonearms with fixed headshell.
Features:
– Acclaimed Nude FG-70 stylus on aluminium cantilever
– Wide Range Damping (WRD)
– High rigidity extruded aluminium construction plus aluminium cover/housing
MC 20 Super Technical data
Output voltage at 1000 Hz, 5cm/sec. – 0,25 mV
Channel balance at 1 kHz – < 1,0 dB Channel separation at 1 kHz – > 25 dB
Channel separation at 15 kHz – > 15 dB
Frequency range at – 3dB – 20-25.000 Hz
Frequency response – 20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force – > 80 µm
Compliance, dynamic, lateral – 15 µm/mN
Stylus type – Nude FG-70
Stylus tip radius – r/R 6/70 µm
Tracking force range – 1,6-2,0 g (16-20 mN)
Tracking force, recommended – 1,8 g (18 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 5 Ohm
Recommended load impedance – > 10 Ohm
Cartridge body material – Aluminium
Cartridge colour – Gold
Cartridge weight – 9 g
Headshell weight – 10g
