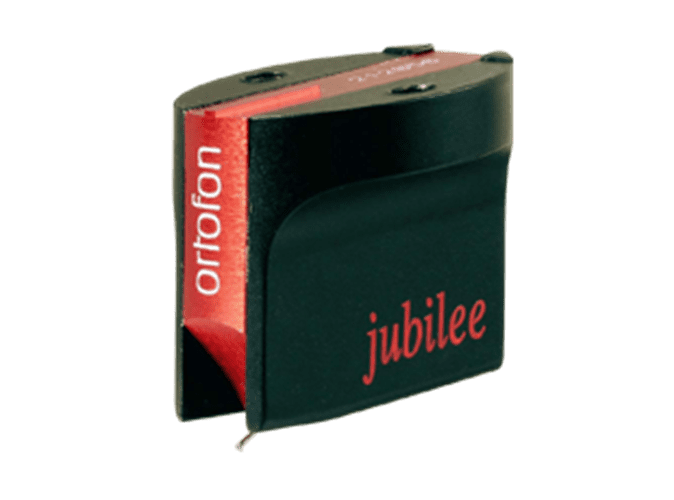

MC Jubilee

MC Jubilee

Category:

Description

The effective mass has been reduced in the stylus/cantilever system by using a very thin boron rod. This material is extremely stiff and even more lightweight compared to aluminum. Besides is the velocity of sound almost 3 times higher compared to that of aluminum.

Combined with the Nude high-polished Shibata diamond stylus at the end of the cantilever we have developed one of the new elements responsible for the new sound 6-nines (99.9999%) pure silver is used for the coils on the armature.

Amazing tonal neutrality, dynamics and purity of sound of Ortofon MC Jubilee set new standards for potency, detail, consistency and sound staging.

A high performance MC transformer or MC preamplifier is required to take full advantage of these qualities. Recommended load: 10 Ohms or much higher, unless the ancillary system has bright tendencies.

Additional information

Brand

MC Jubilee Technical data

Output voltage at 1000 Hz, 5cm/sec. – 0,34 mV
Channel balance at 1 kHz – < 1 dB Channel separation at 1 kHz – > 27 dB
Channel separation at 15 kHz – > 20 dB
Frequency range at – 3dB – 20-60.000 Hz
Frequency response – 20-20.000 Hz + 1,5 / – 0 dB
Tracking ability at 315Hz at recommended tracking force – 100 µm
Compliance, dynamic, lateral – 16 µm/mN
Stylus type – Nude Shibata
Stylus tip radius – r/R 6/50 µm

Tracking force range – 2,0-2,5 g (20-25 mN)
Tracking force, recommended – 2,3 g (23 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 5 Ohm
Recommended load impedance – > 10 Ohm
Cartridge body material – Stainless steel/aluminium
Cartridge colour – Purple/Black
Cartridge weight – 10,5 gram
