Description
McIntosh has a long and distinguished history with tuners. The MR78 from the early 1970s is considered by many to be one of – if not the best – tuners ever made. The MR87 AM/FM Tuner continues this legacy by allowing you to enjoy the multitude of free music streaming over the airwaves.
It features proprietary radio-frequency (RF) circuitry to receive strong FM signals from nearby stations – something that can overload other tuners – without distortion while also receiving weaker FM signals located further away with little to no noise. The included RAA2 AM antenna features a 20-foot (6m) long cable that allows flexibility in placing the antenna in order to achieve the best AM reception.

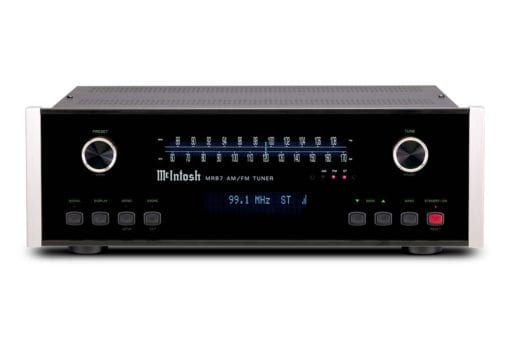

AM and FM stations may be luxuriously tuned using the smooth acting tuning knob and glass dial with illuminated pointer. The digital readout will display various information such as station name, music genre, artist name and song title when transmitted by the station. Up to 20 stations in each the AM and FM band may be stored in memory. Stations may be scanned with either the front panel controls or remotely from the included remote control. Advanced DSP tuning minimizes multipath tuning noise for clear audio quality. Both analog and digital outputs are included to connect the MR87 to your preamplifier or other system components.

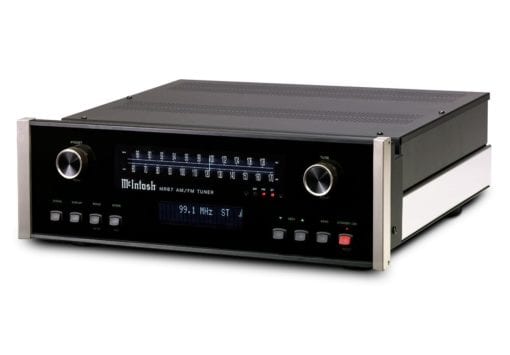

The MR87’s classic black glass front panel, knobs and brushed aluminum end caps are all housed in an attractive polished stainless steel chassis that delivers a timeless look. It can be paired with a variety of amplifiers, speakers, room correction devices, CD players, turntables, home theater processors and other source components to make a complete home audio system. Contact your local dealer to learn more.
FM GENERAL SPECIFICATIONS
FM TUNING RANGE
87.5MHz – 108.0MHz (Europe)
87.9MHz – 107.9MHz (USA)
76MHz – 90MHz (Japan)
FM CHANNEL SPACING
50kHz, 100kHz or 200kHz
FM ANTENNA INPUT
75 ohms, Type “F” Coax connector
FM HD RADIO SPECIFICATIONS
SENSITIVITY
N/A
SIGNAL TO NOISE RATIO
N/A
FREQUENCY RESPONSE
N/A
TOTAL HARMONIC DISTORTION
N/A
STEREO SEPARATION
N/A
FM ANALOG SPECIFICATIONS
USEABLE SENSITIVITY
2.2uV (18.1dBf)
50DB QUIETING SENSITIVITY
1.5uV (14.8dBf)
SIGNAL TO NOISE RATIO
Mono: 70dB
Stereo: 68dB
FREQUENCY RESPONSE
±1dB 20Hz to 15,000Hz
TOTAL HARMONIC DISTORTION
Mono: 0.4%
Stereo: 0.8%
CHANNEL SELECTIVITY
60dB Adjacent Channel
66dB Alternate Channel
STEREO SEPARATION
38dB
AM GENERAL SPECIFICATIONS
AM TUNING RANGE
522kHz – 1602kHz (Europe)
530kHz – 1710kHz (USA)
522kHz – 1611kHz (Japan)
AM CHANNEL SPACING
10kHz
AM ANTENNA INPUT
Balanced, RJ45 connector (for use only with supplied McIntosh RAA2 Remote AM Antenna)
AM HD RADIO SPECIFICATIONS
SIGNAL TO NOISE RATIO
N/A
FREQUENCY RESPONSE
N/A
TOTAL HARMONIC DISTORTION
N/A
STEREO SEPARATION
N/A
AM ANALOG SPECIFICATIONS
SENSITIVITY
350uV/m
SIGNAL TO NOISE RATIO
50dB
FREQUENCY RESPONSE
0dB, -6dB 50Hz to 3,000Hz
TOTAL HARMONIC DISTORTION
0.5%
SELECTIVITY
45dB Adjacent Channel
DIGITAL AUDIO SPECIFICATIONS
DIGITAL COAXIAL OUTPUT
0.5V p-p/75 ohm
DIGITAL OPTICAL OUTPUT
-15dbm to -21dbm
SAMPLING FREQUENCY
48kHz

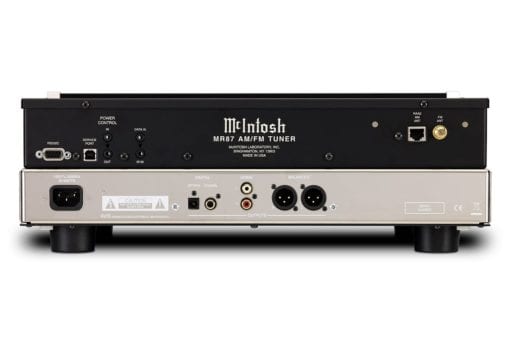

CONNECTIVITY
OUTPUTS UNBALANCED
1 Stereo
OUTPUTS BALANCED
1 Stereo
DIGITAL COAXIAL OUTPUT
1
DIGITAL OPTICAL OUTPUT
1
AM ANTENNA INPUT
1
FM ANTENNA INPUT
1
XM ANTENNA INPUT
0
CONTROL
REAR PANEL DATA INPUT
Yes
REAR PANEL IR SENSOR INPUT
Yes
POWER CONTROL INPUT
Yes
POWER CONTROL OUTPUT
Yes
RS232 CONTROL INPUT
Yes
SERVICE PORT
Yes
GENERAL SPECIFICATIONS
BANDS
AM/FM
RATED OUTPUT
1Vms Unbalanced
2Vms Balanced
OUTPUT IMPEDANCE
100 ohms Unbalanced or Balanced
STANDBY POWER REQUIREMENT
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17-1/2″ (44.45cm) x 6″ (15.24cm) x 18″ (45.72cm)
WEIGHT
25.5 lbs (11.6 kg)
SHIPPING WEIGHT
40 lbs (18.1 kg)
