Description

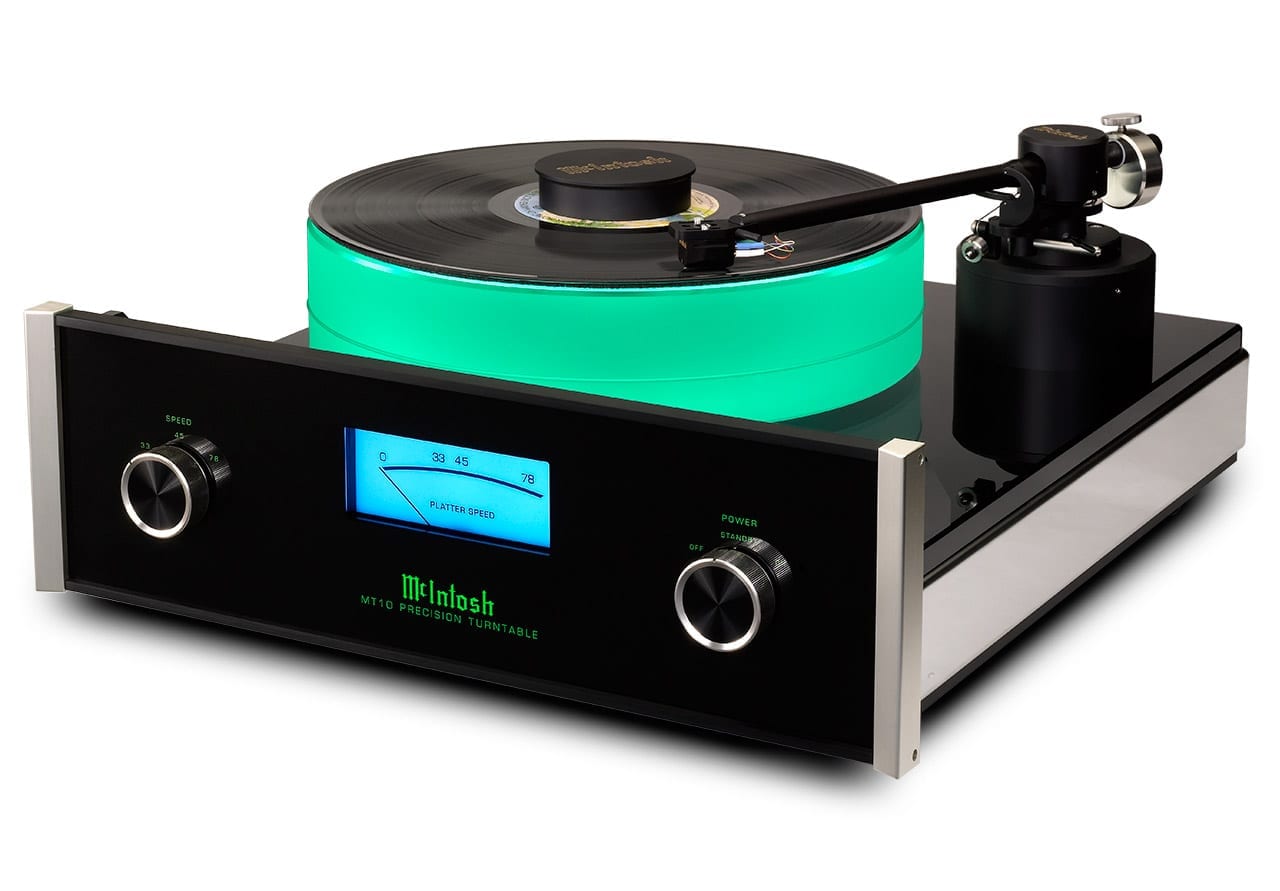

With tracking force, anti-skate and cartridge position preset at the factory, the McIntosh MT10 delivers high performance LP playback with minimal set up. A custom tonearm features a rigid, dural-aluminum arm-tube gimbaled in two sapphire (horizontal) and two ceramic (vertical) bearings for the least possible friction. A .5mV moving coil cartridge is included, and features an ebony body with an elliptical stylus. Enjoy a new level of music with the MT10 turntable. This source component will help make your home theater system even better. Contact your local dealer to learn more.
CARTRIDGE SPECIFICATIONS
CARTRIDGE TYPE
Moving Coil, Low Output
OUTPUT LEVEL
0.5 mV at 5 cm/s
LOAD IMPEDANCE
400 to 500 Ohms recommended
FREQUENCY RESPONSE
20Hz to 50kHz
CHANNEL SEPARATION
Greater than 30dB at 1Khz
COMPLIANCE
6 x 10-6 cm/dyne
RECOMMENDED TRACKING FORCE
2.4 g
CHANNEL DIFFERENCE
Less than 0.3 dB at 1kHz
TOTAL MASS
11 g
STYLUS
Elliptical Diamond
CANTILEVER MATERIAL
Aluminum
TONEARM SPECIFICATIONS
BEARING
Sapphire and Ceramic
ARM TUBE
Dural-Aluminum
COUNTERWEIGHT
Eccentric
ADJUSTMENTS
VTA, Antiskate, Azimuth
TURNTABLE SPECIFICATIONS
PLAYBACK SPEEDS
33 1/3, 45 and 78 rpm
MOTOR TYPE
DC Brushless
SPEED CONTROL
Electronic w/ braking feature
PLATTER
Silicon Acrylic
PLATTER BEARING
Magnetic Suspended Ceramic
CONNECTIVITY
STEREO OUTPUTS UNBALANCED
1
CONTROL
POWER CONTROL INPUT
Yes
POWER CONTROL OUTPUT
Yes
PLATTER LIGHT
Yes
SPEED CONTROL FINE ADJUSTMENT
Yes
GENERAL SPECIFICATIONS
DUST COVER
No
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17-1/2″ (44.45cm) x 8-13/16″ (22.38cm) x 21″ (53.34cm)
Note: Tone Arm Height will vary depending on the type of Cartridge installed.
WEIGHT
42 lbs (19 kg)
