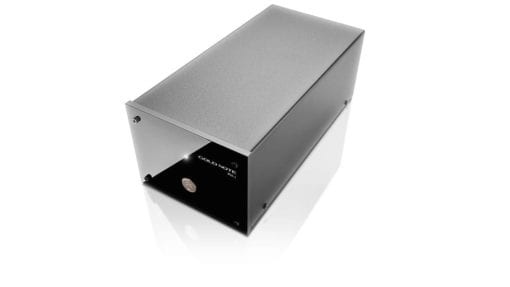

PH-1

SKU: PH-1 Category:

Description

HIGH PERFORMANCE MM & MC PHONO PREAMP WITH ULTRA LINEAR POWER SUPPLY

PH-1 is a shielded MM & MC phono preamplifier with isolated power supply that can be used with large variety of phono cartridges.

The silent background stage is ideal to match PH-1 with low output MC cartridges (down to 0.15mV). To optimize audio performances, PH-1 features our proprietary quadruple stabilised.

PH-1 was developed to be matched with any kind of MM and MC cartridges without the need of an external step-up transformer even when matched with cartridges with less than 10ohm of internal impedance.

PH-1 will bring superior audio purity into your system, particularly if used in combination with the external super Power Supply.*

*optional

Additional information

Brand

Four rail audio grade power supply
Four ultra low noise voltage regulator
+12V, +5V for logic
+/- 14V for analog with inductive noise remover
Line regulation for all output 0,05 %/V
Load regulation for all output 0,05 %Vu
Line noise rejection >80dB
Common mode noise rejection >80dB
220mm L | 80mm A | 260mm
5 Kg

POWER
Mains supply: 100/120V & 220/240V (50/60Hzautomatic selection)
Nominal power: 25W
Dynamic power: >50W
Stand by power: <1W
Full power response time <2,5usec
