SPU A95

Category:

Description

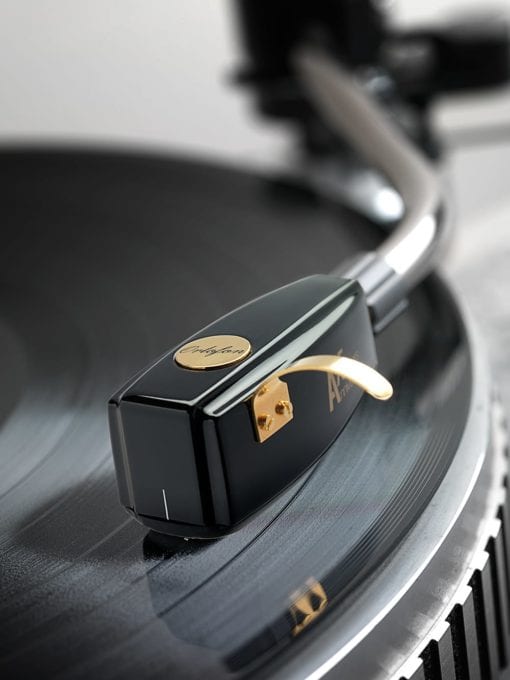

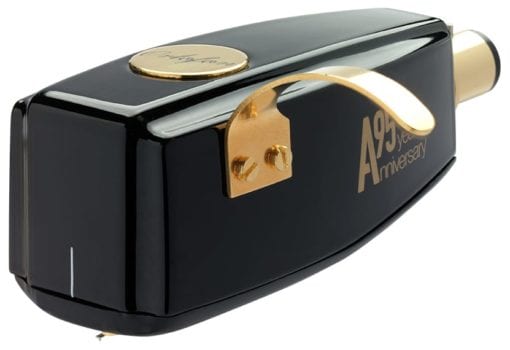

Ortofon SPU A95 – a state of the art product representative of numerous Ortofon design elements and ideals – is manufactured to celebrate Ortofonʼs 95 years of masterful analog research and technology.

Since the advent of moving coil technology, the SPU series cartridges have always remained near and dear to both those looking for the most musical and refined sound quality, as well as those looking to recapture the essence of authenticity in a nod to some of the best audio components of all time. With the SPU A95, the bar is raised for both its modern and vintage counterparts.

The new Ortofon SPU A95 has gone to the next level by reducing unwanted vibrations in the cartridge. Our extensive knowledge of vibration properties, characteristics in different shapes and materials, competences in magnetism, mechanical design and new technologies have been applied for optimization of the SPU A95.

Additional information

Brand

Technical data

Output voltage at 1000 Hz, 5cm/sec. – 0.3 mV
Channel balance at 1 kHz – 1 dB
Channel separation at 1 kHz – 23 dB
Channel separation at 15 kHz – 15 dB
Frequency response – 20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force *) – 70 µm
Compliance, dynamic, lateral – 9 µm/mN
Stylus type – Nude Elliptical
Stylus tip radius – r/R 8/18 µm
Tracking force range – 2.5-3.5 g (25-35 mN)
Tracking force, recommended – 3.0 g (30 mN)
Tracking angle – 20°
*) Typical value

Internal impedance, DC resistance – 2 ohm
Recommended load impedance – 10 – 50 ohm
Cartridge body material – Ground wood and resin composite
Frame structure – Titanium
Coilwire material – Silverplated Copper
Cartridge colour – Shiny Black
Cartridge weight – 28 g
