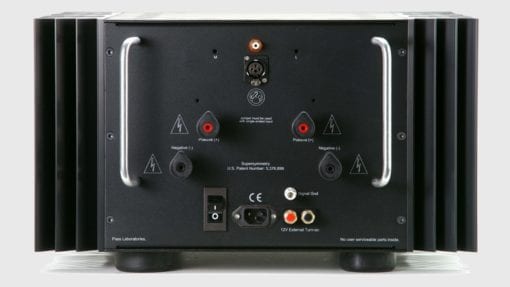

The X600.8 monoblock amplifiers deliver 600 watts into 8 ohms. Even more impressive they effortlessly drive the most demanding loudspeakers to musical nirvana, be the performance full scale orchestra, high-decibel rock band or string quartet. Exhaustive listening tests, not myopic focus on specifications have informed the development of this and the rest of the Pass Labs product offering, and you can hear it.
| Brand |
|---|
Technical specifications
Class
AB
Type
Mono
Gain (dB)
26
Full Pwr @ 26 dB gain (V)
3.46
Low Frequency Response
1.5 Hz
High Frequency Response
100 KHz
Power Output /ch (8 ohm)
600
Distortion (1 KHz, full power)
1%
Input Impedance (SE & BAL Kohms)
50/100
Damping Factor
200
Output Noise (uV)
200
Current Draw @ Idle (Amps)
4.6
Power Consumption (Watts)
550
Temperature (deg C.)
53
Number of Chassis
1
Unit Dimension (W x D x H) (In.)
19 x 21.5 x 11
Unit Weight (LBS)
123
